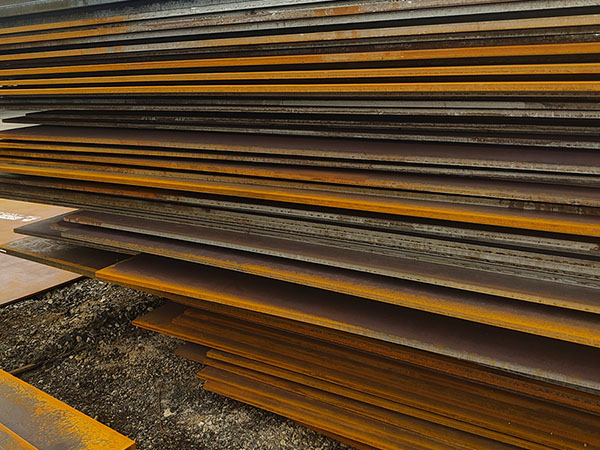

GB/T 4171 Q500NH Weathering Steel Plate (Corten Steel Plate)

GB/T 4171 Q500NH is an advanced structural material that combines high strength, excellent weathering resistance, low maintenance costs, and unique aesthetic value. It represents an important choice in modern steel structures, moving toward high performance, long service life, low maintenance requirements, and sustainable development. In projects with stringent demands on life-cycle costs and aesthetics—such as bridges, buildings, and vehicle manufacturing - its comprehensive advantages are particularly outstanding. When selecting this material, it is necessary to consider specific usage environments, structural design, initial treatment methods, and cost in a comprehensive manner.

An appropriate quality grade (A,B,C,D,E) should be selected based on the engineering application environment (e.g., humidity, salt spray, temperature).

Key Features and Advantages

1. High Strength:

Yield strength ≥ 500 MPa, tensile strength ranging from 570 to 720 MPa. This indicates a high load-bearing capacity, allowing for thinner cross-sections compared to ordinary steels (such as Q235) under the same load, thereby achieving structural lightweighting.

2. High Weather Resistance:

A core characteristic. By adding small amounts of alloying elements such as copper, phosphorus, chromium, and nickel to the steel, a dense and strongly adherent protective rust layer (known as a "stable rust layer") forms on the surface when exposed to the environment. This rust layer prevents further penetration of oxygen and moisture into the base material, significantly slowing down the corrosion rate.

Its atmospheric corrosion resistance is typically 2 to 8 times that of ordinary carbon steel, depending on the specific environment.

3. Paint-Free/Reduced Maintenance:

Owing to its weather resistance, this steel can be used exposed in many applications without initial painting or with only minimal coating. The rust color evolves over time, forming a unique and naturally stable reddish-brown appearance. This significantly reduces long-term maintenance costs (such as repeated rust removal and repainting), offering better lifecycle economics.

4. Good Weldability:

While ensuring high strength and weather resistance, the carbon equivalent and the content of harmful elements such as phosphorus and sulfur are strictly controlled, ensuring good weldability.

Carbon Equivalent (CEV) of Q500NH Weathering Steel Plate (Corten Steel Plate) : ≤ 0.50%

* Calculate using the standard formula recommended by the International Institute of Welding (IIW): CE = C + Mn/6 + (Cr+Mo+V)/5 + (Ni+Cu)/15

Note: "a" is the thickness of the steel material

Impact Energy

* The main difference lies in the varying impact test temperature requirements, ranging from Grade A (no requirement) to Grade E (-40°C), with progressively increasing demands for low-temperature toughness.

Due to its high strength and excellent weather resistance, Q500NH Weathering Steel Plate (Corten Steel Plate) is commonly used in high-end structural projects that demand high requirements for weight reduction, durability, and aesthetics:

1. Bridge Engineering:

Particularly for large-span railway bridges, highway bridges, and pedestrian landscape bridges. It can be used for critical load-bearing components such as main beams, arch ribs, and bridge piers, achieving lightweight design and significantly reducing long-term maintenance burdens.

2. Building Facades and Roofs:

Used for the exterior facades or roofs of high-end public buildings, cultural venues, and landmark structures, seeking a distinctive rust-colored texture and long-term maintenance-free performance.

3. Tall Structures:

Such as power transmission towers, communication towers, lighthouses, and chimneys. These structures are difficult to maintain, and the use of weathering steel can significantly enhance their service life and safety.

4. Heavy-Duty Vehicles and Engineering Machinery:

Used for dump truck bodies, crane booms, and other components, leveraging its high strength and certain corrosion resistance to reduce weight and improve performance.

5. Containers and Transportation Equipment:

Used in the manufacturing of special containers that require high strength and durability.

6. Art Sculptures and Landscape Features:

Utilizing its natural rusting characteristics as a material for artistic creations.

Precautions for Usage and Design

1. Initial Rust Control:

Before a stable rust layer forms (approximately 1–3 years), rust runoff (yellowish water) may contaminate surrounding walls or ground. Accelerated rust stabilization treatments (e.g., spraying rust-inducing agents) can be applied to speed up the formation of a stable rust layer, or design measures can be implemented to guide rust runoff drainage.

2. Environmental Adaptability:

Performs best in dry, clean rural and urban atmospheres.

In high chloride environments (e.g., coastal areas, near de-icing salt roads) or severely industrially polluted environments, its corrosion resistance advantages diminish, requiring careful evaluation or additional protective measures.

3. Connection Detail Design:

Water-retaining structures should be avoided. Sealing should be ensured at connection points such as bolts and welds to prevent crevice corrosion.

4. Contact with Concrete:

When weathering steel comes into contact with wet concrete, its weathering performance cannot be utilized. Conventional anti-corrosion treatment is still required for the contact surfaces.

Quality Grade Selection Guide

Comparison with Similar Steel Grades

Note: The same series of "GNH" grades (e.g., Q355GNH) are high weather resistance grades, offering better weather resistance but slightly poor weldability.
