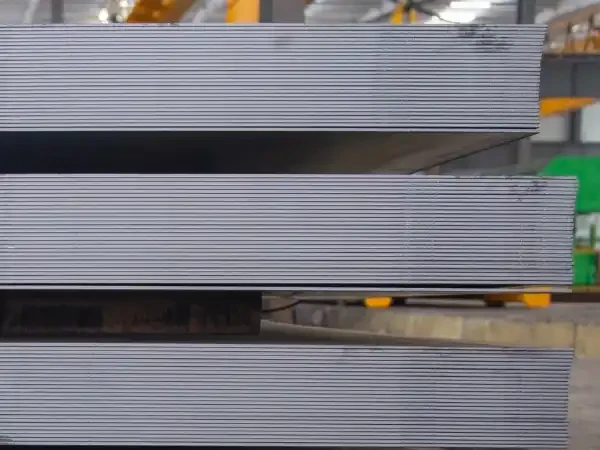

BV Grade AH32 Shipbuilding Steel Plate - High-Strength Marine Structural Steel

info@yx-steel.com 8615837212056 Get a Quote

BV Grade AH32 is a high-strength marine structural steel certified by Bureau Veritas (BV), primarily suitable for commercial shipbuilding, offshore engineering, and marine auxiliary structures with high load-bearing requirements in conventional temperate waters. We supply BV Grade AH32 steel plates in a full range of specifications, accompanied by valid official BV certification, complete Mill Test Certificates (MTCs), and comprehensive quality traceability records throughout the entire production process. We also accept third-party inspections. We are committed to providing highly reliable and cost-effective BV AH32 steel solutions to shipyards, offshore engineering contractors, and marine equipment manufacturers worldwide.

Certification :
BV Rules
Grade :
BV Grade AH32 (BV AH32)
Thickness :
5.0 - 150.0 mm
Width :
1,500.0 - 4,000.0 mm
Length :
6,000.0 - 18,000.0 mm

Special thickness, width, and length can be negotiated separately.
We also provide customized processing services.If you have any questions, please contact us.

Overview

1. What is BV Grade AH32 shipbuilding steel plate?

BV Grade AH32 shipbuilding steel plate is a high-strength hull structural steel plate certified by Bureau Veritas (BV). It features stable mechanical properties, good impact toughness at 0°C, good resistance to seawater corrosion, excellent weldability and formability, and good cost-effectiveness. It is widely used in shipbuilding for conventional temperate and cold-temperate waters, as well as in offshore engineering platforms and large offshore auxiliary structures.

2. Meaning of the Designation

BV: Certified by Bureau Veritas (BV)

A: Quality grade "A" (Must meet the requirements of the impact test at 0°C)

H: High strength steel

32: Yield strength ≥ 315 MPa (≈ 32 kgf/mm²)

Available Specifications and Dimensions

Product Name	BV Grade AH32 Shipbuilding Steel Plate
Certification	BV
Grade	AH32
Classification	High-Strength Structural Steel for Ship Hulls
Thickness	5 - 150 mm
Width	1,500 - 4,000 mm
Length	6,000 - 18,000 mm
Delivery Conditions	Hot Rolled (HR), Control Rolled (CR), Thermo-Mechanical Controlled Processed (TMCP), Normalized (N), Quenched and Tempered (Q+T).
Surface Conditions	Original hot-rolled black scale. No cracks, scarring, delamination, inclusions, or deep scratches.
Machining Services	Precision cutting, bending, drilling, rust removal, shot blasting, anti-corrosion coating, and heat treatment.
Additional Inspection	Ultrasonic Testing (UT), Z-direction performance testing (Z15/Z25/Z35 grades), third-party inspections (e.g., SGS, BV), and multiple classification society certifications (ABS, CCS, DNV, LR, NK, etc.)
MOQ	20 tons (small orders can be negotiated).
Delivery Time	15 - 20 days after order confirmation (urgent orders accepted).
Packaging	Standard export packaging for sea transport, or as required.
Country of origin	China

Chemical Composition

* (Heat Analysis, wt %)

Grade	C	Si	Mn	P	S	Cu	Cr	Ni	Nb	V	Ti	Mo	Als
BV AH32	≤ 0.18	≤ 0.50	0.90 - 1.60	≤ 0.030	≤ 0.030	≤ 0.35	≤ 0.20	≤ 0.40	0.02 - 0.05	0.05 - 0.10	≤ 0.02	≤ 0.08	≥ 0.015

Carbon Equivalent

Thickness (mm)	5 - 50	50 - 150
Typical CEV (wt %)	≤ 0.36	≤ 0.38

Calculation formula (IIW): CEV = C + Mn/6 + (Cr + Mo + V)/5 + (Ni + Cu)/15

Mechanical Properties

Grade	Yield Strength (ReH), MPa	Tensile Strength (Rm), MPa	Elongation (A), %
BV AH32	≥ 315	450 - 570	≥ 22

Impact Properties

Grade	Thickness, mm	Temperature, ℃	Impact Energy, KV₂ / J
Grade	Thickness, mm	Temperature, ℃	Longitudinal	Transverse
BV AH32	≤ 50	0	≥ 31	≥ 22
	> 50 - 70	0	≥ 38	≥ 26
	> 70 - 150	0	≥ 46	≥ 31

Characteristics and Advantages

1. Reliable Low-Temperature Toughness at 0°C

Maintains stable structural integrity in temperate, low-temperature marine environments and effectively resists brittle fracture.

2. Stable High Strength and Marine Durability

Possesses stable, high mechanical strength, capable of withstanding long-term heavy loads, intense wave impacts, and complex alternating stresses.

3. Excellent weldability and machinability

Good weldability and stable ductility facilitate on-site cutting, bending, and welding operations, resulting in high construction efficiency.

4. Excellent resistance to seawater corrosion

Effectively resists corrosion from long-term seawater immersion, salt spray erosion, and wave impact abrasion, extending service life.

5. Excellent Fatigue Resistance

It exhibits excellent fatigue resistance under high-frequency alternating wave loads, delaying crack initiation and propagation.

6. Balance of Performance and Cost

While meeting high-strength load-bearing requirements, it avoids the high costs associated with performance redundancy at extremely low temperatures, thereby enhancing the overall economic benefits of the project.

Applications

1. Large Vessel Construction

Applies to critical load-bearing structures of commercial vessels such as bulk carriers, container ships, oil tankers, coastal passenger ships, and fishing vessels, including hull plating, main decks, load-bearing bulkheads, and fatigue-resistant structural components.

2. Load-Bearing and Auxiliary Structures for Temperate Marine Platforms

Used for high-strength load-bearing components, equipment bases, support trusses, and deck functional facilities on coastal platforms, shallow-water work platforms, and floating facilities in temperate and subtropical waters.

3. Coastal Port Facilities and Offshore Auxiliary Structures

Suitable for coastal wharves, port auxiliary facilities, offshore guardrails, vessel mooring facilities, and support structures for coastal engineering projects.

4. Structures for Core Auxiliary Marine Equipment

Used for the bases of heavy-duty shipboard cranes, main winch supports, load-bearing components in engine rooms, and auxiliary supports for offshore construction in temperate waters.

FAQ

Q1:

What is the key difference between BV DH32 and BV AH32 marine steels?

The key differences between the two lie in their low-temperature impact toughness and the ambient temperatures for which they are suitable.

BV AH32: Requires impact toughness at 0°C and is suitable for medium- to low-load marine structures in temperate waters above 0°C.

BV DH32: Requires impact toughness at -20°C, offers excellent resistance to brittle fracture and stable low-temperature mechanical properties, and is specifically designed for primary load-bearing structures of ships and offshore platforms in cold-temperate waters ranging from -20°C to 0°C, meeting safety standards for cold regions not covered by AH32.

Q2:

What are the common delivery conditions for BV Grade AH32 shipbuilding steel plates?

Common delivery conditions include:

HR: Hot-Rolled

CR: Controlled Rolled

TMCP: Thermo-Mechanical Control Process

N: Normalized

QT: Quenched and Tempered

The choice of delivery condition depends on the plate thickness and final performance requirements. TMCP and normalized treatments typically provide better low-temperature toughness and weldability.

Q3:

What are the equivalent materials for BV AH32 shipbuilding steel plates?

The equivalent material grades for BV AH32 among other major classification societies include:

Material Grade	Classification Society
ABS AH32	American Bureau of Shipping
CCS AH32	China Classification Society
DNV AH32	Det Norske Veritas
LR AH32	Lloyd’s Register
KR AH32	Korean Register of Shipping
NK AH32	Nippon Kaiji Kyokai

Specific equivalence determinations are subject to project certification requirements and the final delivery status.

Q4:

What is the difference between BV AH32 and BV AH36?

The main difference is the strength level.

Grade	Yield Strength (ReH)	Tensile Strength (Rm)	Impact Energy (KV2)	Elongation (A)
BV AH32	≥ 315 MPa	450 - 570 MPa	≥ 31 J (at 0°C, Longitudinal)	≥ 22 %
BV AH36	≥ 355 MPa	490 - 630 MPa	≥ 34 J (at 0°C, Longitudinal)	≥ 21 %

AH36 offers higher strength, while AH32 is typically chosen when moderate strength and better cost-effectiveness are required.

Q5:

Is BV AH32 shipbuilding steel plate easy to weld?

Yes. BV AH32 is specifically designed for shipbuilding and offers good weldability due to its controlled chemical composition and low carbon equivalent. Common welding methods include SAW (Submerged Arc Welding), SMAW (Shielded Metal Arc Welding), and GMAW/MIG (Gas Metal Arc Welding). Welding procedures must comply with the shipyard’s approved welding specifications, and strict adherence is particularly important when welding thick plates.

Q6:

What are the applications of BV Grade AH32 shipbuilding steel plate?

BV Grade AH32 is a high-strength marine structural steel plate certified by Bureau Veritas (BV), with a minimum yield strength of 315 MPa and impact toughness at 0°C. It is primarily used in the construction of large commercial ocean-going vessels, medium-load offshore platforms, coastal port facilities, and the repair and reinforcement of marine structures. It is the mainstream structural steel for load-bearing applications in conventional, high-standard marine engineering projects worldwide.
