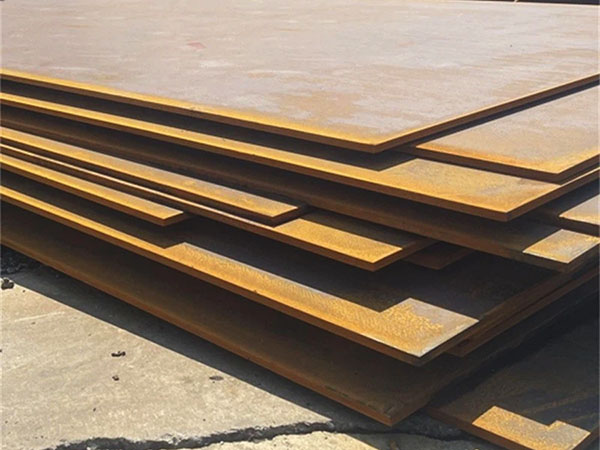

ASTM A516 Grade 60(A516GR60) Boiler and Pressure Vessel Steel Plate
ASTM A516 Grade 60(A516GR60) Boiler and Pressure Vessel Steel Plate
ASTM A516 Grade 60(A516GR60) Boiler and Pressure Vessel Steel Plate is a carbon steel plate compliant with ASTM A516/A516M standards, be widely used in the manufacturing of medium-temperature and medium-pressure vessels for industries
Standard :
ASTM A516/A516MGrade :
A516 Grade 60 (A516GR60)-
Thickness :
6.0-300.0 mm -
Width :
1500-4050 mm -
Length :
3000-15000 mm
Special thickness, width, and length require negotiation.
We also provide customized processing services.If you have any questions, please contact us.
General Description of A516 Grade 60 (A516GR60)
ASTM A516 Grade 60(A516GR60) Boiler and Pressure Vessel Steel Plate is a high-quality carbon steel plate widely used in the manufacturing of medium-temperature and medium-pressure vessels for industries including petroleum, chemical, and power generation.
Chemical Composition of A516 Grade 60 (A516GR60)
| Grade | Chemical Composition(%) | ||||
| C | Mn | Si | P (Max) | S (Max) | |
| A516 Grade 60 (A516GR60) | 0.21-0.27 | 0.13-0.45 | 0.79-1.30 | 0.035 | 0.035 |
Mechanical Properties of A516 Grade 60 (A516GR60)
| Grade | Mechanical Property | |||
| Tensile Strength(MPa) | Yield Strength(MPa) | Elongation (%) | Impact Test (Charpy V-Notch) | |
| A516 Grade 60 (A516GR60) | 415-550 | ≥220 | ≥21 | ≥ 20 J (15 ft-lb) at -50°F (-45°C) (for normalized plates) |
Applications of A516 Grade 60 (A516GR60)
1. Pressure vessels
2 .Boilers
3. Storage tanks
4. Heat exchangers
5. Other pressure-containing components
Other Information
Comparison with Other Grades:
The key grades of ASTM A516 (55/60/65/70) are primarily distinguished by their tensile strength:
| Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Key Use Case |
| A516 Grade 55 | 380-515 | 205 | Low-pressure applications |
| A516 Grade 60 | 415-550 | 220 | Intermediate pressure |
| A516 Grade 65 | 450-585 | 240 | Higher pressure |
| A516 Grade 70 | 485-620 | 260 | High-pressure & low-temp |
Comparable Standards:
ASME SA516 (equivalent to ASTM A516 for ASME Boiler and Pressure Vessel Code)
EN 10028-2 P295GH (European equivalent)
Welding & Fabrication:
Weldability: Good (preheat may be required for thick sections)
Post-Weld Heat Treatment (PWHT): Often recommended for stress relief
Advantages:
✔ Good strength and toughness at moderate temperatures
✔ Excellent weldability and formability
✔ Cost-effective for pressure vessel construction
Limitations:
❌ Not suitable for high-temperature applications (above 400°C/750°F)
❌ Requires impact testing for low-temperature service
