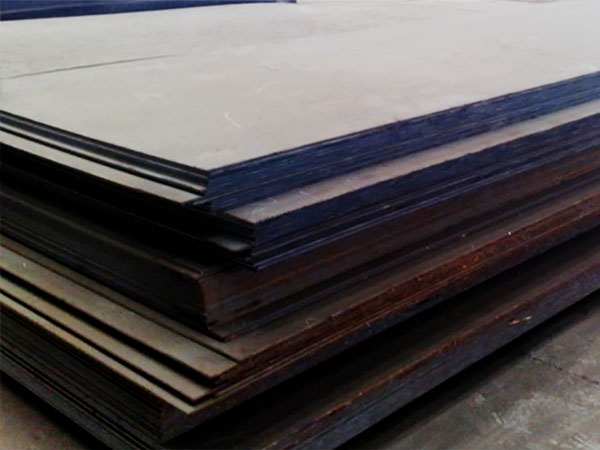

ASTM A387 Grade 11 Class 1(A387GR11CL1) Boiler And Pressure Vessel Steel Plate

info@yx-steel.com 8615837212056 Get a Quote

ASTM A387 Grade 11 Class 1 (A387GR11CL1) is a chromium-molybdenum alloy steel plate with good high-temperature strength and resistance to hydrogen corrosion. It is commonly used in the manufacturing of welded boilers and pressure vessel components, such as reactors, towers, boiler drums, etc.

Standard :
ASTM A387/A387M
Grade :
A387 Grade 11 Class 1 (A387GR11CL1)
Thickness :
6.0-300.0 mm
Width :
1500-4050 mm
Length :
3000-15000 mm

Special thickness, width, and length can be negotiated separately.
We also provide customized processing services.If you have any questions, please contact us.

Overview

ASTM A387 Grade 11 Class 1 is a chromium-molybdenum alloy steel plate specifically designed for high-temperature and high-pressure environments. It offers good high-temperature strength, resistance to hydrogen corrosion, weldability, and workability. It is primarily used in the manufacturing of welded boilers, pressure vessels, and other industrial equipment operating under high-temperature and high-pressure conditions.

Grade	A387 Grade 11 Class 1 (A387GR11CL1)
Standard	ASTM A387/A387M: Standard Specification for Pressure Vessel Plates, Alloy Steel, Chromium-Molybdenum
Delivery Conditions	Annealing (A)
Weldability	The weldability is good, but strict preheating, controlled interpass temperature, and post-weld heat treatment (PWHT) procedures are required to prevent cold cracking.
Machinability	Machining operations such as cutting, bending, and stamping can be performed. Stress relief annealing is required after cold forming.
Quality Control	100% ultrasonic testing (UT) is performed in accordance with ASTM A578 to ensure the absence of internal laminations or cracks. Magnetic particle testing (MT) and/or penetrant testing (PT) are used for surface flaw inspection.

Key Features and Advantages

1. Excellent High-Temperature Performance: Maintains good strength and creep resistance at temperatures as high as 595°C (1100°F).

2. Hydrogen Attack Resistance: The addition of chromium and molybdenum enables it to resist the erosion of steel by hydrogen atoms in high-temperature and high-pressure hydrogen environments (such as hydrotreating units in refineries), preventing hydrogen-induced cracking and hydrogen blistering.

3. Good Weldability: Due to its lower carbon equivalent, A387 Gr.11 offers better weldability than higher-grade chromium-molybdenum steels (e.g., Gr.22). However, strict welding procedures, including preheating and post-weld heat treatment, must still be followed.

4. Sufficient Toughness and Ductility: The annealed condition provides good formability and processing capabilities.

Chemical Composition

Grade	A387 Grade 11 Class 1 (A387GR11CL1)
Element	C	Si	Mn	P	S	Cr	Mo
Content (max, %)	0.04 - 0.17	0.35 - 0.73	0.30 - 0.60	0.025	0.025	0.94 - 1.56	0.40 - 0.70

Mechanical Properties

Grade	A387 Grade 11 Class 1 (A387GR11CL1)
Yield Strength (ReH) [min, MPa]	Tensile Strength (Rm) [MPa]	Elongation (A) [min, %]	Hardness (HBW) [max]
240	415 - 585	18	201

Applications

ASTM A387 Grade 11 Class 1 (A387GR11CL1) steel plate is specifically used for manufacturing equipment that operates in high-temperature, high-pressure, and corrosive environments.

1. Petrochemical Industry: Hydrogenation reactors, synthesis towers, heat exchangers, separators, etc., capable of withstanding high temperatures, high pressures, and corrosive media (such as hydrogen, hydrogen sulfide).

2. Power Industry: Power station boiler drums, high-temperature pipelines, suitable for supercritical units with steam parameters up to 540°C.

3. Nuclear Energy Sector: Nuclear reactor pressure vessels and auxiliary equipment, meeting stringent safety requirements.

4. Other Applications: Liquefied petroleum gas storage tanks, high-pressure pipelines for hydropower stations, industrial furnace components, etc.

Other Information

Comparison: Class 1 vs. Class 2

Grade	Delivery Conditions	Features
ASTM A387 Grade 11 Class 1	Annealing (A)	It has lower strength but better plasticity and toughness.
ASTM A387 Grade 11 Class 2	Normalizing & Tempering (N&T)	It offers higher strength and superior high-temperature performance.

Why Choose ASTM A387 Grade 11 Class 1(A387GR11CL1) Boiler And Pressure Vessel Steel Plate for Oil & Gas Projects?

✔ High-Temperature Service: Up to 595°C (1100°F)

✔ Hydrogen Resistance: Prevents embrittlement in H₂-rich environments

✔ Sour Service Capability: NACE MR0175 compliant option available

✔ Optimized Weldability: Low cracking risk with proper PWHT
