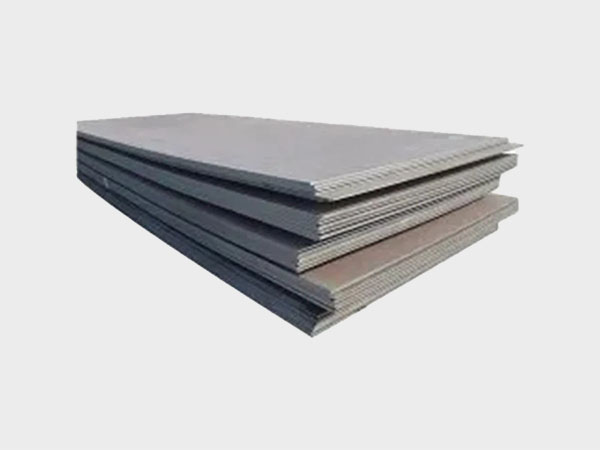

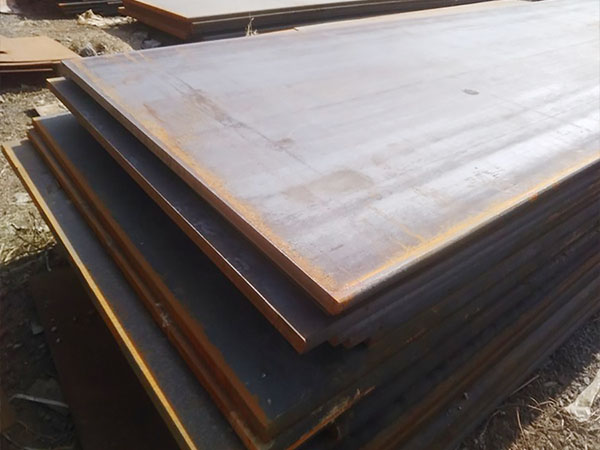

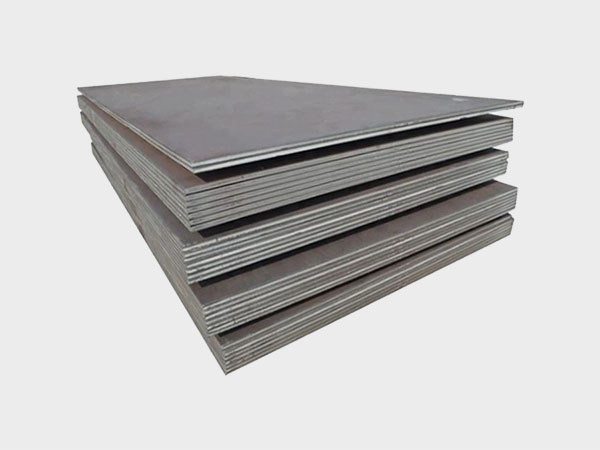

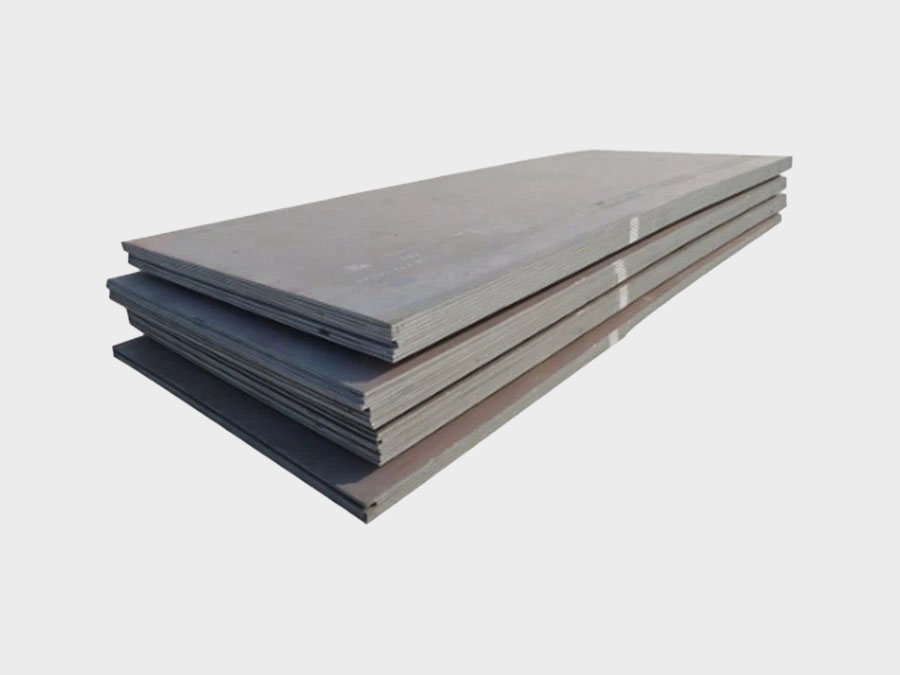

EN 10028-2 P355GH Boiler And Pressure Vessel Steel Plate
EN 10028-2 P355GH Boiler And Pressure Vessel Steel Plate
EN 10028-2 P355GH Boiler And Pressure Vessel Steel Plate is a non-alloy steel plate,designed for pressure equipment operating at moderate to high temperatures. It offers a balanced combination of strength, weldability, and toughness, making it a wide...
Standard :
EN 10028-2Grade :
P355GH-
Thickness :
6.0-300.0 mm -
Width :
1500-4050 mm -
Length :
3000-15000 mm
Special thickness, width, and length require negotiation.
We also provide customized processing services.If you have any questions, please contact us.
General Description of P355GH
EN10028-2 P355GH Boiler And Pressure Vessel Steel Plate is a non-alloy steel plate, its steel grade under the EN 10028-2 European standard, designed for pressure equipment operating at moderate to high temperatures. It offers a balanced combination of strength, weldability, and toughness, making it a widely used material in boilers, pressure vessels, and structural components.
Key Features
✔ High Strength – Minimum yield strength (355 MPa) and good tensile properties.
✔ Good Weldability – Suitable for welding with proper procedures (pre/post-weld heat treatment may be required).
✔ Temperature Resistance – Performs well in service temperatures up to 350°C (662°F).
✔ Impact Toughness – Maintains ductility even at lower temperatures (Charpy V-notch tested).
✔ Formability – Can be cold-formed and machined effectively.
Chemical Composition of P355GH
| Grade | Chemical Composition(%) | ||||
| C (Max) | Mn | Si (Max) | P (Max) | S (Max) | |
| EN10028-2 P355GH | 0.20 | 1.00-1.70 | 0.60 | 0.025 | 0.015 |
Mechanical Properties of P355GH
| Grade | Mechanical Property | |||
| Tensile Strength(MPa) | Yield Strength(MPa) | Elongation (%) | Impact Energy (KV) | |
| EN10028-2 P355GH | 470-650 | ≥355 | ≥22 | ≥40 J at -20°C |
Applications of P355GH
Typical Applications of EN10028-2 P355GH Boiler And Pressure Vessel Steel Plate:
1. Boilers
2. Pressure vessels
3. Heat exchangers and steam pipelines
4. Petrochemical processing equipment
5. Power plant components
EN10028-2 P355GH Boiler And Pressure Vessel Steel Plate is a cost-effective, high-performance steel for pressure equipment in energy, chemical, and oil & gas industries. Proper heat treatment and welding controls ensure optimal performance in demanding environments.
Yuxin Steel provides high-quality steel products that comply with EN, ASTM, ASME, JIS, GB, and other standards. The main product categories include: boiler and pressure vessel steel plates, high-strength low-alloy steel plates, weather-resistant steel, wind tower steel, and more..
