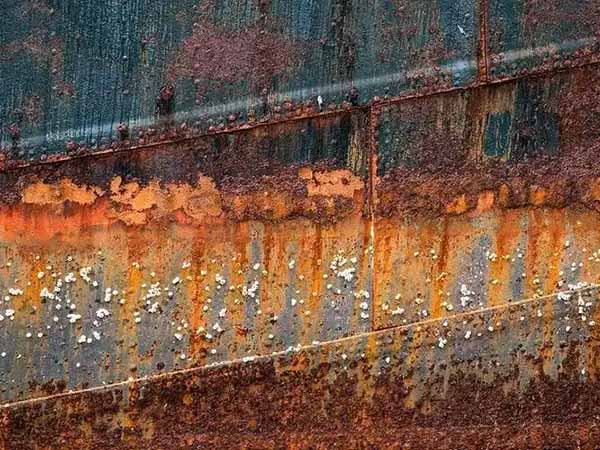

Analysis of the Corrosion Resistance of DNV Grade D Marine Steel Plates

I. The Effect of the Marine Environment on Steel Plate Corrosion

1. Mechanisms of Seawater Corrosion

The marine environment is one of the most severe operating environments for steel. According to data from the International Maritime Organization (IMO) and relevant corrosion studies, the average corrosion rate of unprotected ordinary carbon steel in a marine atmospheric environment can reach:

Among these, the splash zone and tidal zone typically experience the most severe corrosion on ship hulls due to abundant oxygen supply and high salt concentration.

2. Major Factors Affecting Corrosion

2.1 Chloride Ion Corrosion

Seawater contains approximately 3.5% salt, and among these, chloride ions (Cl⁻) possess a strong ability to penetrate steel, destroying the surface oxide film and accelerating electrochemical corrosion.

2.2 Effect of Dissolved Oxygen

Oxygen participates in cathodic reactions, promoting the formation of corrosion cells on the steel surface and increasing the rate of metal loss.

2.3 Temperature Changes

Studies indicate that when seawater temperature rises from 10°C to 30°C, the corrosion rate of steel can increase by approximately 30% to 50%.

2.4 Microbial Corrosion (MIC)

Marine microorganisms such as sulfate-reducing bacteria (SRB) produce hydrogen sulfide, which triggers localized pitting corrosion and crevice corrosion.

Therefore, even when using high-quality ship plates, a comprehensive anti-corrosion system for shipbuilding steel must be established to effectively control corrosion risks.

II. Corrosion Resistance Performance Indicators for DNV Grade D Shipbuilding Steel Plates

1. Advantages of Chemical Composition

DNV Grade D is a general-strength ship hull structural steel with the following typical chemical composition:

Low phosphorus and sulfur content helps improve the microstructural uniformity of the steel plate and reduces the risk of intergranular corrosion.

2. Mechanical Properties

Excellent low-temperature toughness and structural stability enable it to maintain long-term service capability in harsh marine environments.

3. Corrosion Resistance Performance

Although DNV Grade D is not inherently weathering steel, its dense microstructure and low inclusion content, when combined with proper DNV Grade D anti-corrosion measures, yield excellent corrosion resistance.

Actual ship operation data shows:

· A sandblasting + epoxy primer system can reduce the corrosion rate by approximately 70% or more;

· Combined with cathodic protection, corrosion loss can be reduced by 80% - 95%;

· Under proper maintenance conditions, the service life can exceed 25 years.

III. Surface Preparation and Coating Scheme

A high-quality anti-corrosion system typically determines more than 70% of the service life of a ship’s steel structure.

1. Sandblasting Pretreatment

According to ISO 8501-1:

· Recommended grade: Sa2.5

· Surface roughness: 40 - 75 μm

Sandblasting thoroughly removes scale, rust, and contaminants, providing excellent adhesion for subsequent coatings.

2. Epoxy Zinc-Rich Primer

Typical dry film thickness:

· 60 - 80 μm

Advantages include:

· Cathodic protection

· Excellent adhesion

· Good salt spray resistance

This is currently the mainstream DNV Grade D anti-corrosion primer system.

3. Epoxy Intermediate Coat

Recommended thickness:

· 120 - 180 μm

Main functions:

· Enhances barrier performance

· Improves impact resistance

· Reduces moisture penetration

4. Polyurethane Topcoat

Recommended thickness:

· 50 - 80 μm

Features:

· UV resistance

· Excellent color retention

· Strong resistance to chalking

5. Cathodic Protection System

For the hull and ballast tank areas, the following are typically installed:

· Zinc alloy sacrificial anodes

· Aluminum alloy sacrificial anodes

· ICCP (Impressed Current Cathodic Protection) system

This significantly improves the overall rust prevention effectiveness of shipbuilding steel.

IV. Case Studies on Extending Service Life

Case Study 1: 150,000-Ton Bulk Carrier Project

Hull Material:

· DNV Grade D marine steel plate

Coating System:

· Sa2.5 sandblasting

· Epoxy zinc-rich primer 75 μm

· Epoxy intermediate coat 150 μm

· Polyurethane topcoat 60 μm

Operational Status:

· 12 years of continuous service

· No significant structural corrosion detected

· Average annual steel plate thinning less than 0.03 mm

Maintenance costs reduced by approximately 35% compared to traditional coating systems.

Case Study 2: Offshore Platform Structure Project

Project Location:

· Offshore oil and gas platform in the South China Sea

Structural Material:

· DNV Grade D marine steel plate

Measures Implemented:

· Hot-sprayed zinc protection

· Epoxy sealer

· ICCP cathodic protection system

Operational Results:

· After 15 years of inspection, the remaining steel plate thickness exceeded 95%

· Corrosion rate was less than 0.01 mm/year

Significantly better than the industry average.

V. Conclusion

DNV Grade D marine steel plates possess excellent mechanical properties, weldability, and low-temperature impact toughness, making them a critical structural material for modern ships and offshore engineering. However, salt spray, tidal action, and microbial activity in the marine environment continuously exert a corrosive impact on steel structures.

By implementing a scientifically sound DNV Grade D anti-corrosion program-including sandblasting, zinc-rich primer, heavy-duty anti-corrosion coatings, and a cathodic protection system-corrosion rates can be effectively reduced, thereby enhancing structural reliability. At the same time, a comprehensive anti-corrosion management system for shipbuilding steel can significantly extend the service life of the hull, reduce maintenance costs, and create greater economic value for shipowners and shipyards.

For ships and offshore engineering projects with a design life of 20 years or more, the synergistic optimization of material performance and anti-corrosion systems has become key to ensuring long-term safe operation.
